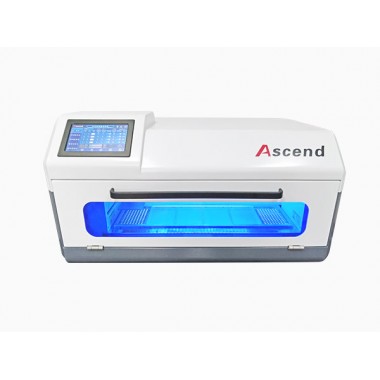

HERO 96 Magnetic Bead Method Nucleic Acid Extractor System
1>>Product Description
Hero 96 nucleic acid extraction system is a biomedical instrument specially used for automatic magnetic bead method nucleic acid extraction. You only need to add the samples to be extracted to the matching kit, put the kit into HERO96, run the program that comes with the instrument, and complete a round of extraction of 96 nucleic acid samples in 15-40 minutes. The unique cryopreservation function of HERO96 nucleic acid extraction system can ensure the quality of the extracted product when you cannot process the extracted nucleic acid in time.
2>> Specification
Processing volume | 50 μl-1000μl | Program output | USB storage device |
Sample throughput | 1-96 samples | Anti-pollution wetted plate | Have |
Elution volume | 50μl-150μl | LED lighting | Have |
Percentage of magnetic beads recovered | >98% | UV sterilization | Have |
Magnetic rod | 4800us/ branch | Air duct pollution prevention | Have |
Extraction time | 15—40min | Display screen | Touch operation, color LCD screen |
Number of platform boards | 6Piece | Input voltage | 100-220V，50/60HZ |
Mixing jacket type | 96 magnetic rod sets | Operating environment | 15-32℃，Humidity 20%-80% |
Temperature | Room temperature to 120°C | Equipment weight | 50KG |
Cooling Temperature | 4℃ | Equipment dimensions | 810mm（D）*487mm（W）*458mm（H） |
RAM | 99 programs | Qualification | CE certification and CFDA certification |
3>>Features and Advantages
(1) Precise
Temperature-controlled precisely and heat up quickly. By heating/cool whole deep-well plate to reduce liquid evaporation. All processes are under strictly controlled.
(2) Efficient
Shorten-extraction time, 96 samples(maximum) can be extracted in 40 minutes, which saves time as well as manual work.
(3) Convenient
All operating procedures have been set up well, just click “running” to start. It reduces the program setting hurdle and operates simply.
(4) Preservation
Extracting production can be cool preservation to keep extracting quality.
4>> Certification
As a professional manufacturer of nucleic acid extraction reagents, Ascend provides professional foundry services for nucleic acid extraction products. We have obtained ISO9001, ISO13485 and CE certification.
If you are interested in our 96 Channels Nucleic Acid Extraction System, pls feel free to contact us.
The details would be sent to you within 24 hours!
